AC Infinity - Refillable Carbon Filter Kit, With Charcoal Refill, 4 Inch - 100 MM

• Reusable carbon filter features a patented design that eliminates the need to replace entire filters.

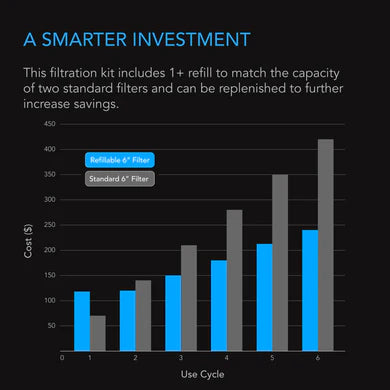

• Includes 1+ refill to match the filtration capacity of two standard 4” carbon filters while costing less.

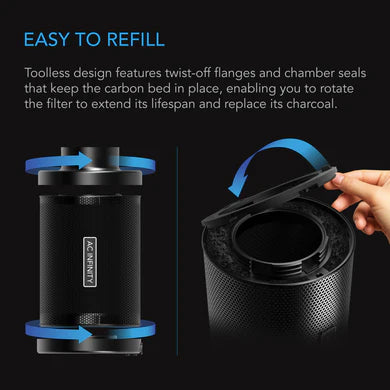

• Removable twist-off flanges support easy, tool-free refilling using the included funnel and scoop.
• Larger chamber is lab-tested to block odours as effectively as standard filters with no compression required.
• Dual-layered steel mesh with protective coating withstands high humidity in grow
  tents through many grow cycles.


PRODUCT DESCRIPTION

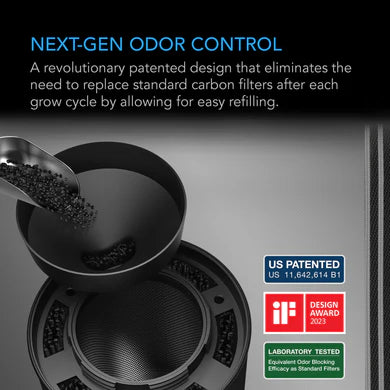

A wholly original replenishable carbon filter designed to permanently replace standard duct filters. This iF Award-winning patented structure can be regularly refilled to offer a cost-effective and sustainable solution for unwanted odours in your grow tent. The charcoal fan filter kit also includes 1+ refill, making it as efficient as two standard inline carbon filters while proving more affordable. You can purchase additional refills at a fraction of the price of an entirely new carbon scrubber to further increase the value of this kit. Features an expanded chamber that enables you to achieve factory carbon compression and the same lab-tested levels of odour-blocking effectiveness as standard carbon filters. This also eliminates the need for you to actively compress your replacement charcoal and facilitates the refilling process.

ECO-FRIENDLY DESIGN

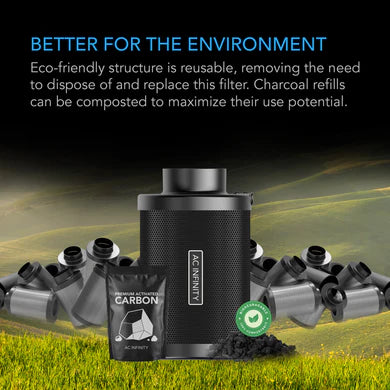

This first-of-its-kind filtration system removes the need to routinely purchase replacement filters and dispose of the old units. Each carbon filter features premium-grade Australian virgin charcoal and comes with 1+ refill. Its activated charcoal utilises an enhanced surface area with a higher adsorption rate to help extend the time between refills. Further lengthen the charcoal bedding’s lifespan by reversing the filter’s easy-to-remove flanges. You can compost the used supply when replacing the charcoal to maximise its utility even further.

HIGHLY DURABLE BUILD

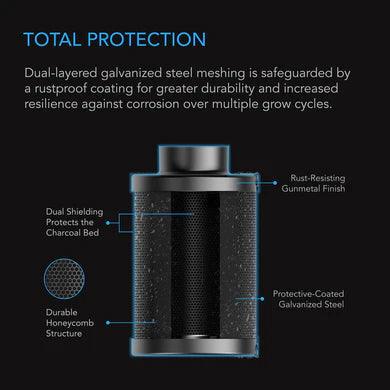

The activated charcoal is safely locked within your odor filter by aluminium flanges and a secure rubber seal. The filter itself employs two layers of galvanised steel meshing with a sandblasted finish to protect the charcoal bedding. These multiple layers work together to effectively block odours in even the most humid environments by ensuring increased resistance to rust and corrosion.

APPLICATIONS

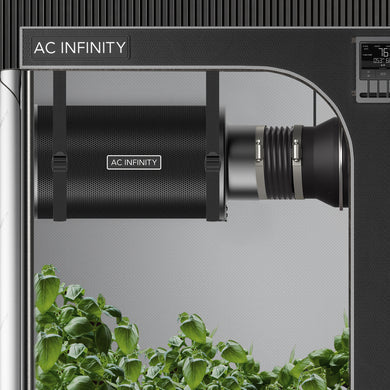

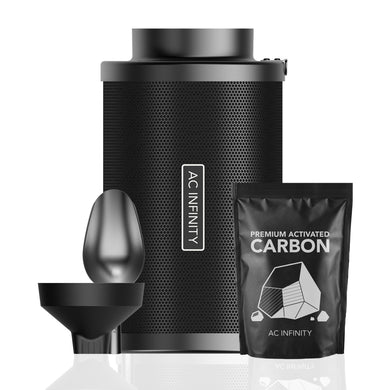

This refillable carbon filter pairs with 4” inline duct fans and ducting to improve air quality in hydroponic grow rooms and grow tents. The kit includes a convenient funnel and scoop set and one charcoal refill for continuous odour scrubbing. Additional refills are available for purchase

Product Identification   Refillable Carbon Filter 4" / 100 MM
Manufacturer	AC Infinity Inc.
Product Name	Refillable Carbon Filter 4"
Product Model	AC-RCF4
UPC Code	819137024168

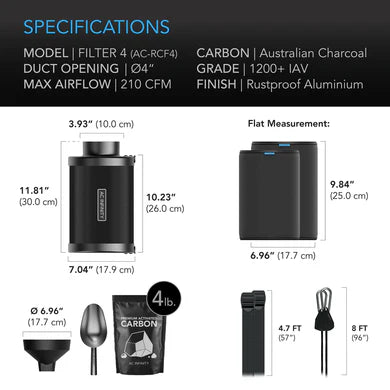

Product and Mounting Dimensions
Duct Opening Size	4"
Total Dimensions	11.81 x 7.04 in. (30.0 x 17.9 cm)
Flange Length	1.57 in. (4.0 cm)
Product Performance and Technical Specs
Flange Material	Aluminum
Flange Design	Reversible
Mesh Material	Rust-Resistant Galvanized Steel with Gunmetal Finish
Carbon Type	Australian Virgin RC412
Carbon Grade	1200+ IAV
Carbon Thickness	38mm
Maximum Airflow	210 CFM
Product Manual
Product Manual	PDF
