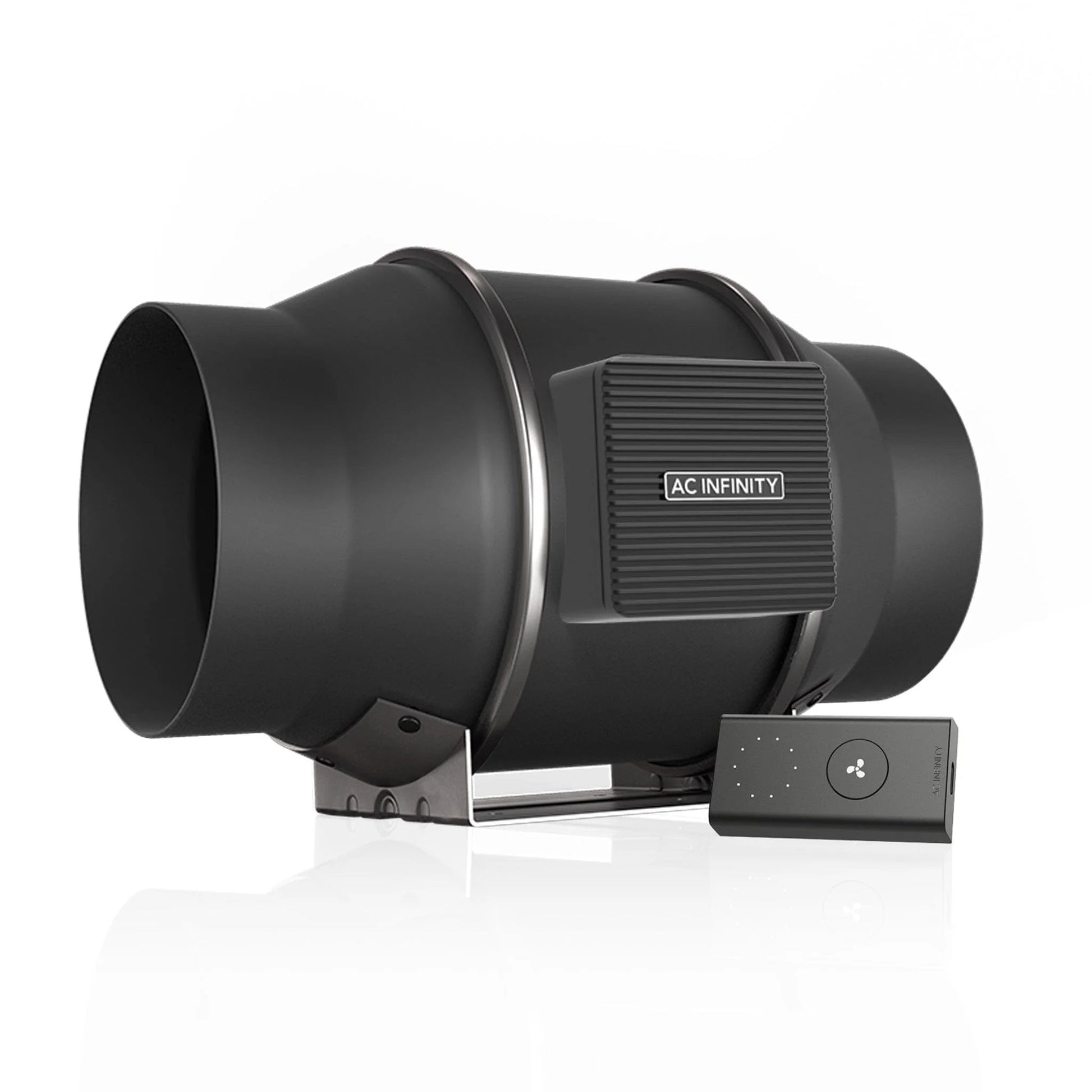

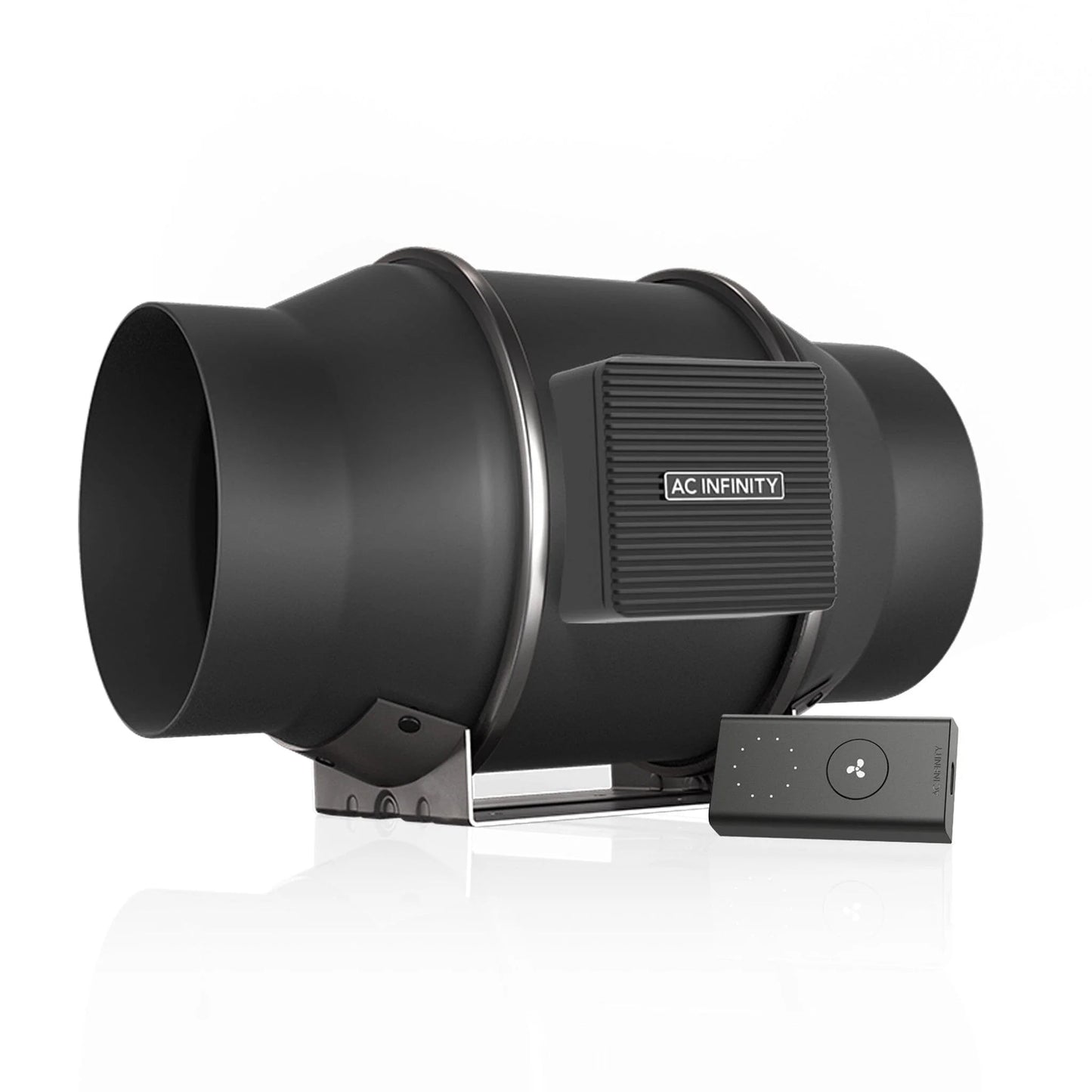

***SPECIAL ORDER*** Cloudline Pro S6, AC Infinity, Quiet Inline Duct Fan With Speed Controller, 6 Inch - 150 MM

***SPECIAL ORDER*** Cloudline Pro S6, AC Infinity, Quiet Inline Duct Fan With Speed Controller, 6 Inch - 150 MM

Regular price $299.95 AUD
Regular price Sale price $299.95 AUD
Sale Sold out
Taxes included. Shipping calculated at checkout.
  • Designed to quietly ventilate grow tents, transfer heating/cooling to rooms, circulate air, exhaust odors, and cool AV racks.
  • Features an 8-speed manual controller utilising PWM. See T-Series for temperature and humidity controls.
  • Mixed flow design combined with a PWM-controlled EC motor for a truly quiet and energy efficient performance.
  • Kit also includes corded AC power adapter, installation manual, and all necessary mounting hardware.
  • Duct Size: 6” | Dimensions: 7.9 x 12.6 x 8.4 in. | Airflow: 402 CFM | Noise: 32 dBA | Bearings: Dual Ball
  • The Cloudline S will connect with the controller 69, no extra cable needed

PRODUCT DESCRIPTION

The duct fan system is designed to quietly cool AV equipment rooms and closets, and to ventilate various air circulation and exhaust projects. Features an inline speed controller utilising PWM-technology. Containing an inline mixed-flow design, the duct fan can maintain airflow even in high static pressure applications. Contains an EC-motor for a quiet and energy efficient performance. The motor box containing the fan’s impeller and blades can be detached from the mounted frame for easy cleaning and maintenance. Complete kit includes one duct fan unit, one inline speed controller, installation manual, and all necessary mounting hardware.

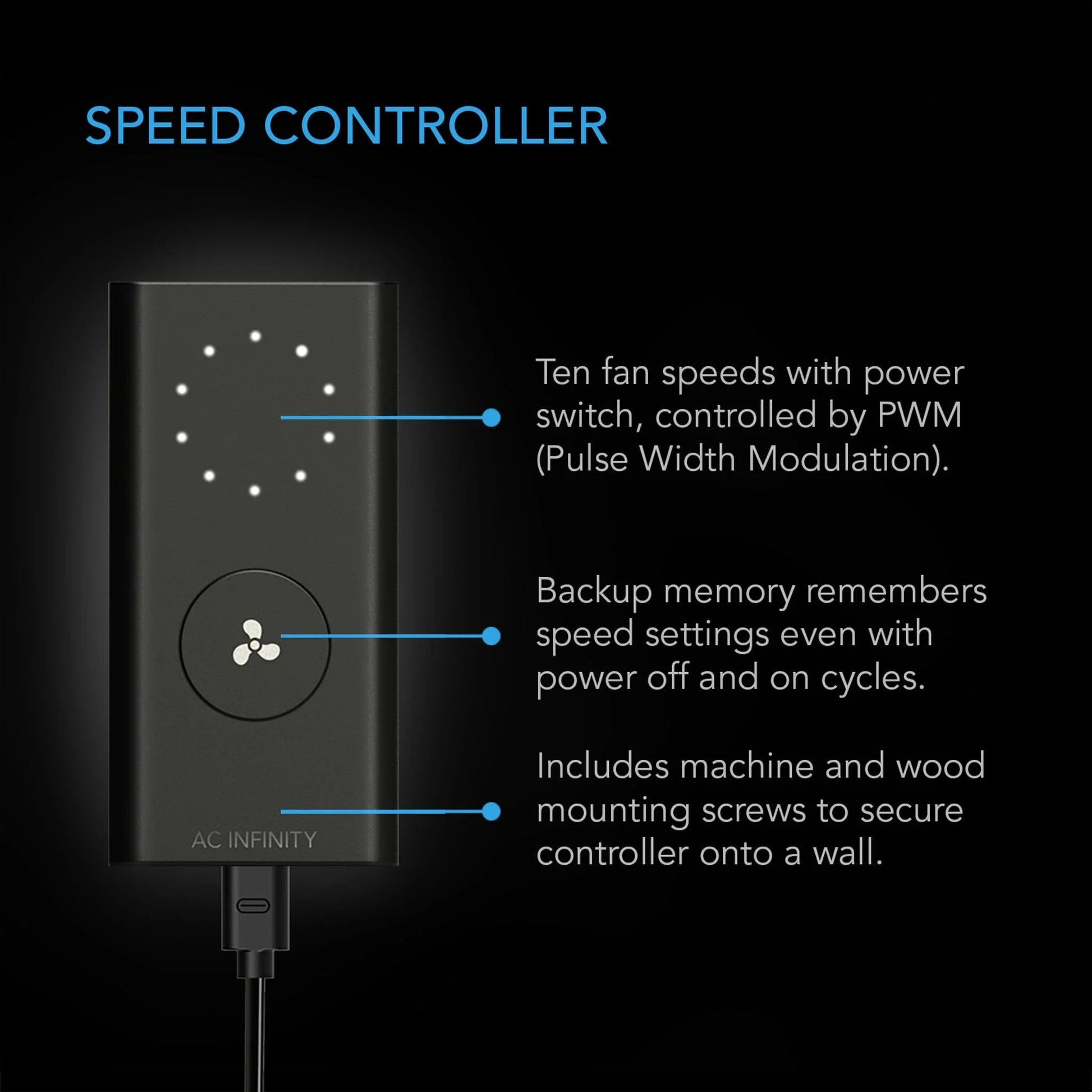

PRECISE SPEED CONTROLLER

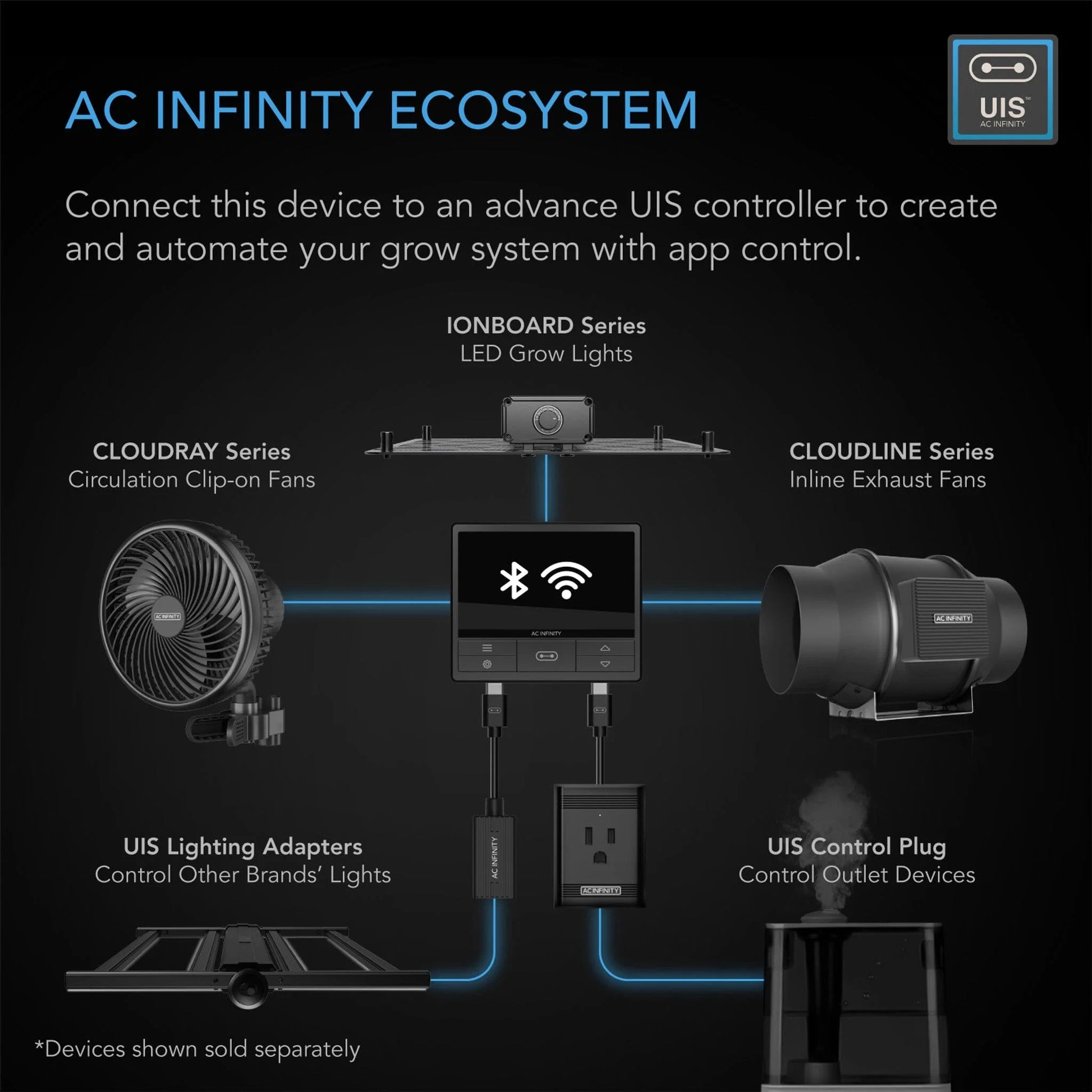

The inline speed controller enables you to set the duct fan’s speed to optimal noise and airflow levels for various environments. Unlike common AC-powered duct fans that suppresses voltage to control fan speeds, this duct fan features an EC-motor that is precisely controlled using PWM (Pulse Width Modulation). This technology enables the fan's motor to be able to run smoothly at extremely low RPM speeds without generating motor noises and heat as seen on variable voltage controllers. Eight speed options are available with power switch, and backup memory. This S6 model can be connected to the smart controller of the CLOUDLINE T6 model to share the same programming and power source.

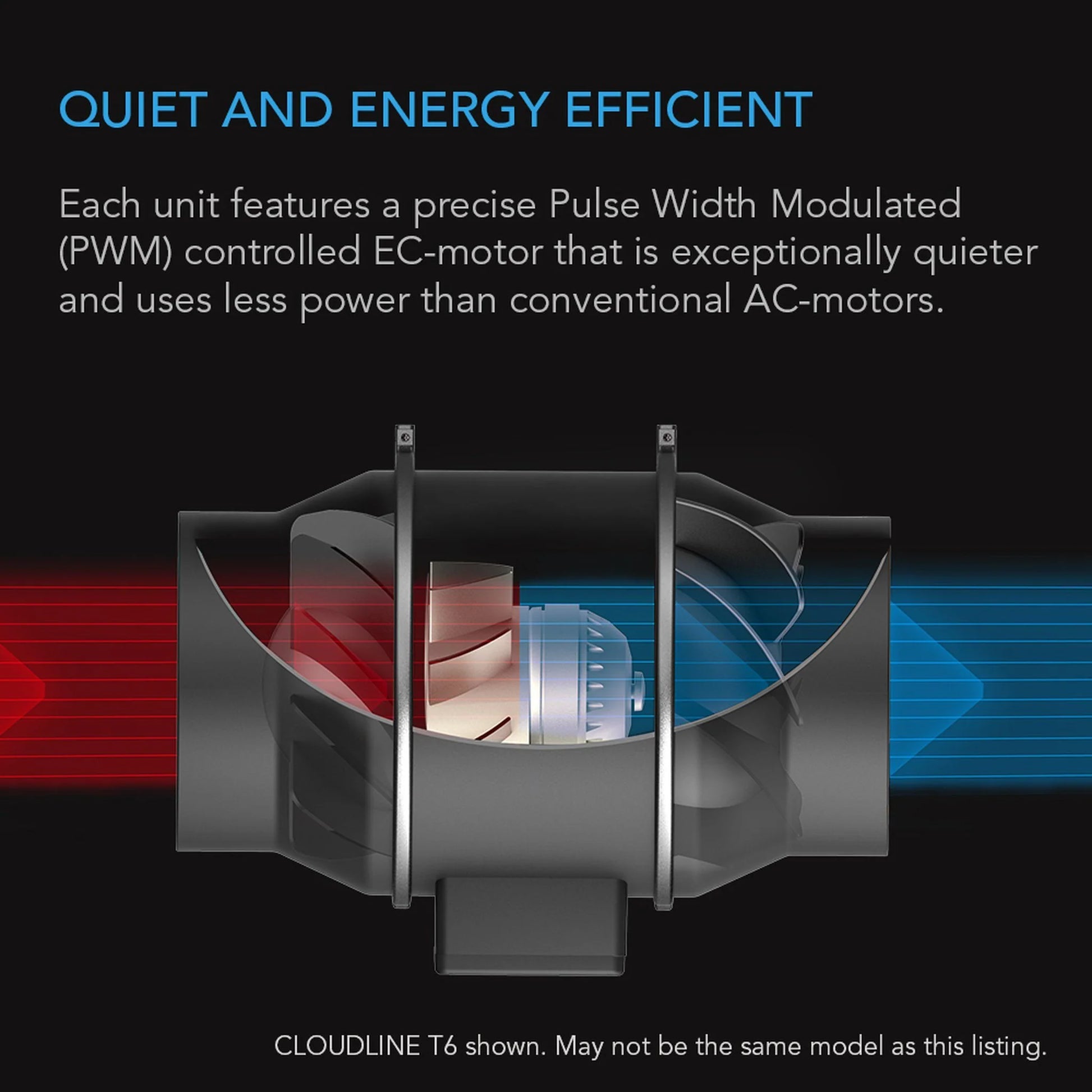

QUIET AND ENERGY EFFICIENT DESIGN

The inline fan features a mixed flow design using a stator blade and dual hydrodynamic wind circles. This gives it a high static pressure rating, enabling it to deliver airflow even in applications where air movement is being restricted. The motor houses dual ball bearings rated at 67,000 hours which allows the duct fan unit to be mounted in any direction. The unit is IP44 rated to be highly resistant to dust and liquids, and performs well even in harsh environments.

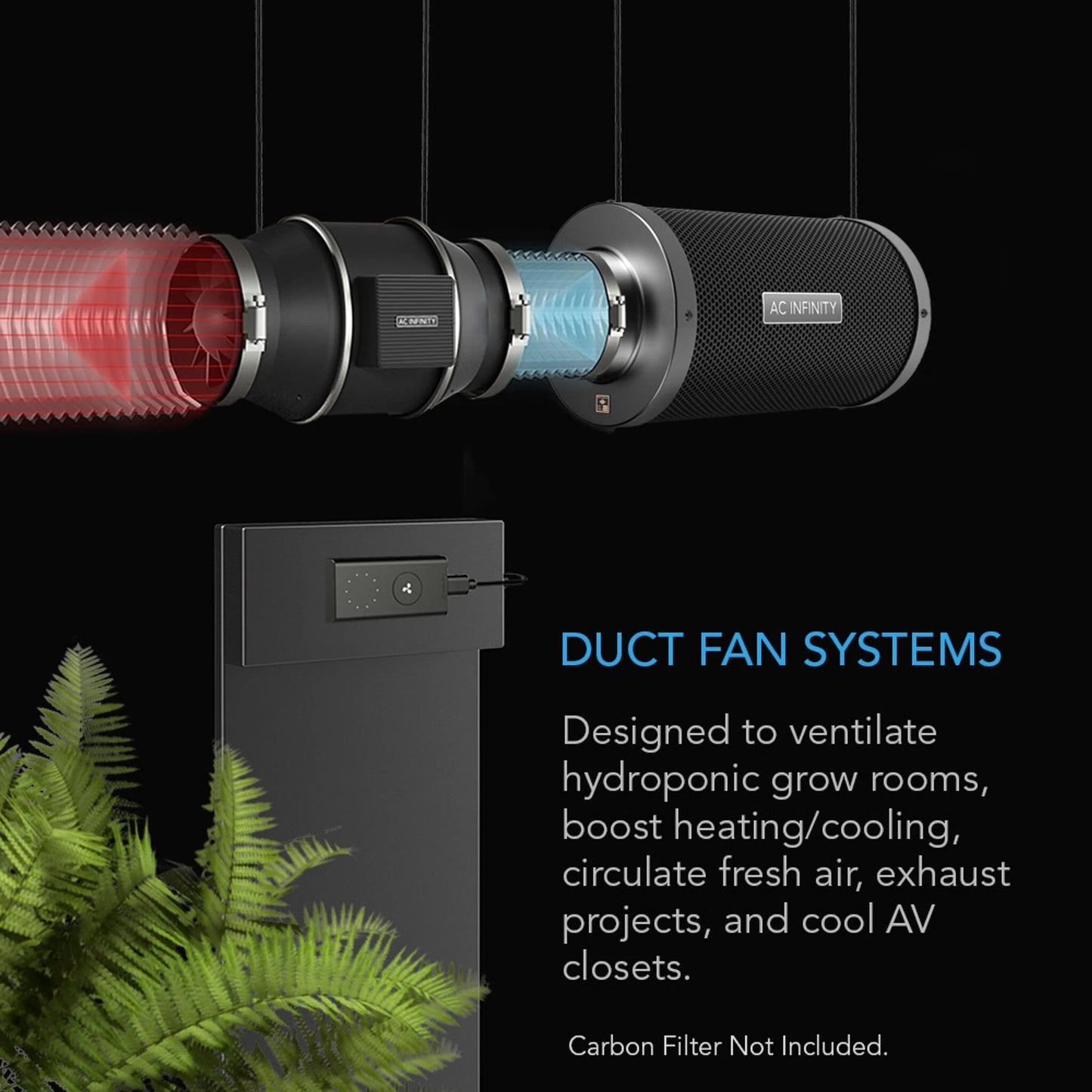

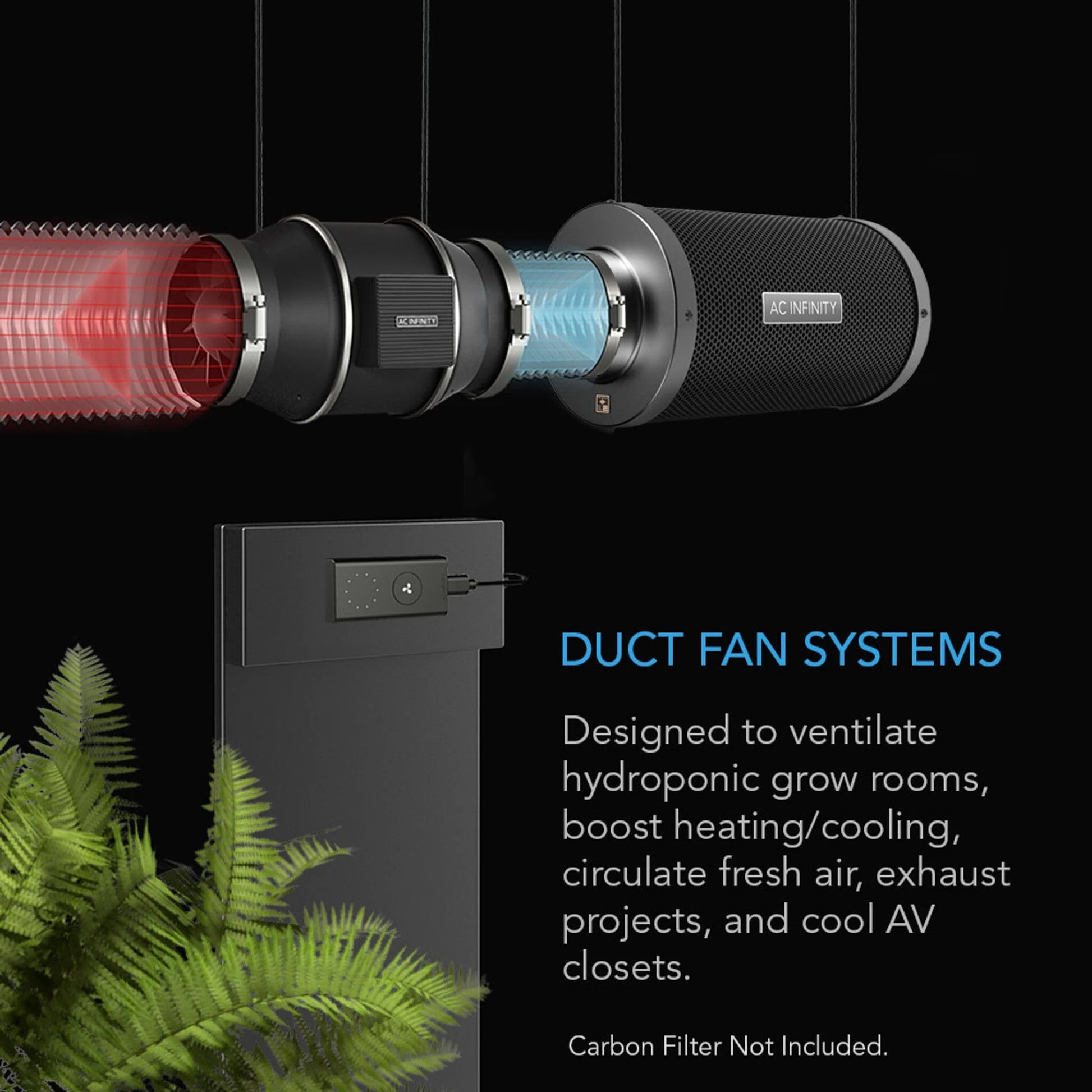

APPLICATIONS

This quiet duct fan system is popular in a variety of applications including cooling AV equipment rooms, closets, racks, and cabinets. Due to its low noise and advanced control features, it’s also used in various air circulation and ventilation projects including hydroponic grow rooms and tents, exhausting bathrooms and attics, and other installations.

Technical Specifications


   Product Identification   Cloudline S6 w. Manual speed controller
   Manufacturer    AC Infinity Inc.
   Product Name    CLOUDLINE S6
   Product Model    AI-CLS6
   UPC Code    819137020306

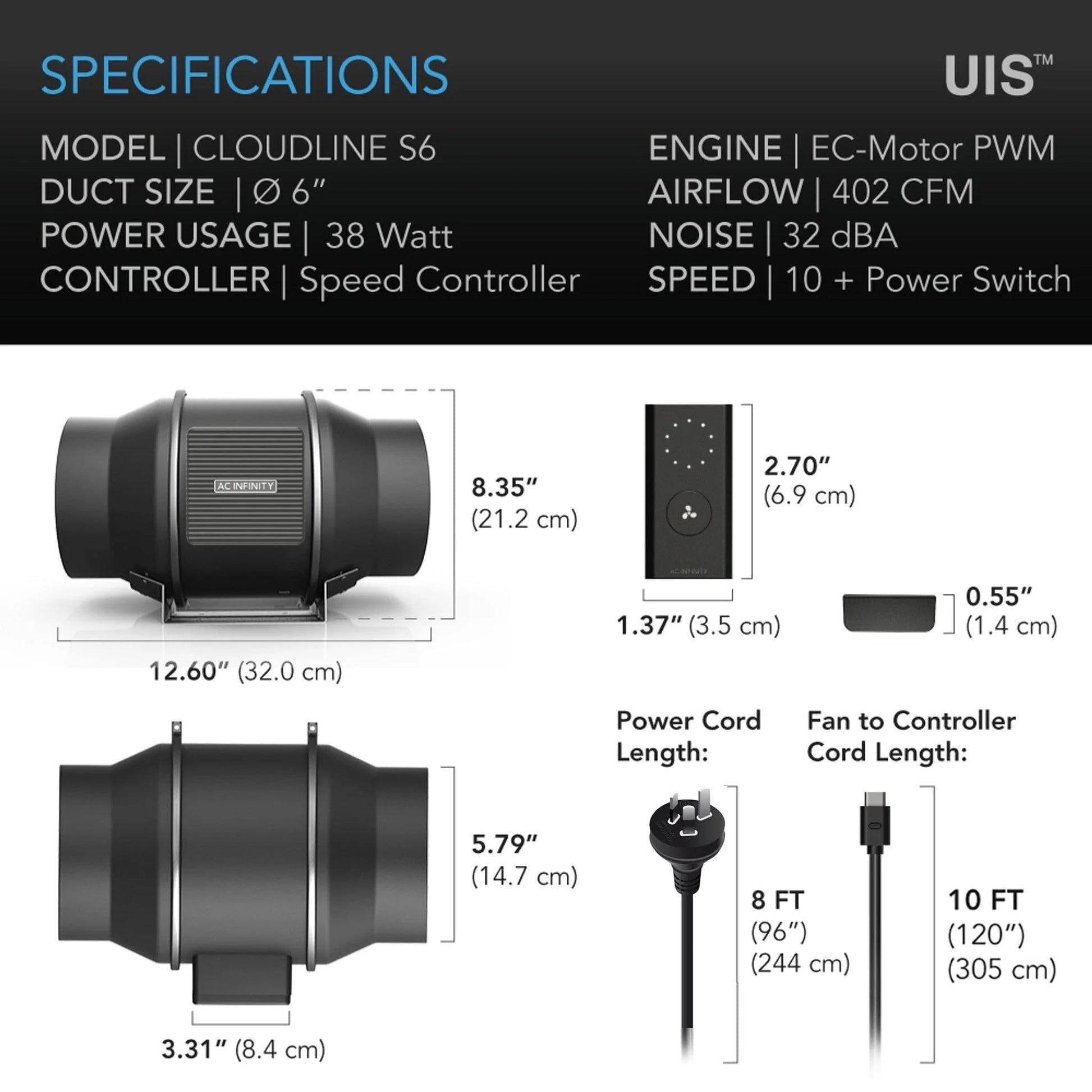

   Product and Mounting Dimensions - Fan Unit
   Duct Size    6"
   Total Dimensions    7.87 x 12.60 x 8.35 in. (21.2 x 32.0 x 20.0 cm)
   Mounting Hole-To-Hole Distance    3.15 X 2.36 in. (8.0 x 6.0 cm)
   Screw Hole Size    Ø 0.236 in. (Ø 0.6 cm)
   Cord Length to Controller    180 in. (15 feet) / 4.5 Metre
   Product and Mounting Dimensions - Controller
   Total Dimensions    3.34 x 2.95 x 0.51 in. (8.5 x 3.6 x 1.3 cm)
   Required Mounting Area    2.95 x 0.51 in. (3.6 x 1.3 cm)
   Hole to Hole Distance    2.87in. (7.3 cm)
   Screw Hole Size    Ø 0.157 in. (Ø 0.4 cm)
   Cord Length to Plug    108 in. (9 feet) / 2.7 metre
   Product Performance and Technical Specs
   Total Airflow    402 CFM
   Total Noise    32 dBA
   Static Pressure    503 Pa
   Voltage    100-240V AC
   Frequency    50/60Hz
   Max Power Draw    64 W
   Average Power Usage    38 W
   Current    1.67 A
   Power Connector Type    Australian power plug
   Operating Humidity    35 to 85% RH
   Operating Temperature    0 to 140°F
   Ingress Protection    IP 44
   Fan Bearings    Dual Ball
   Mounting Positions    Horizontal or Vertical
   L10 Life Expectancy    67,000 Hours
   Fan Quality Approvals    CE, RoHS
