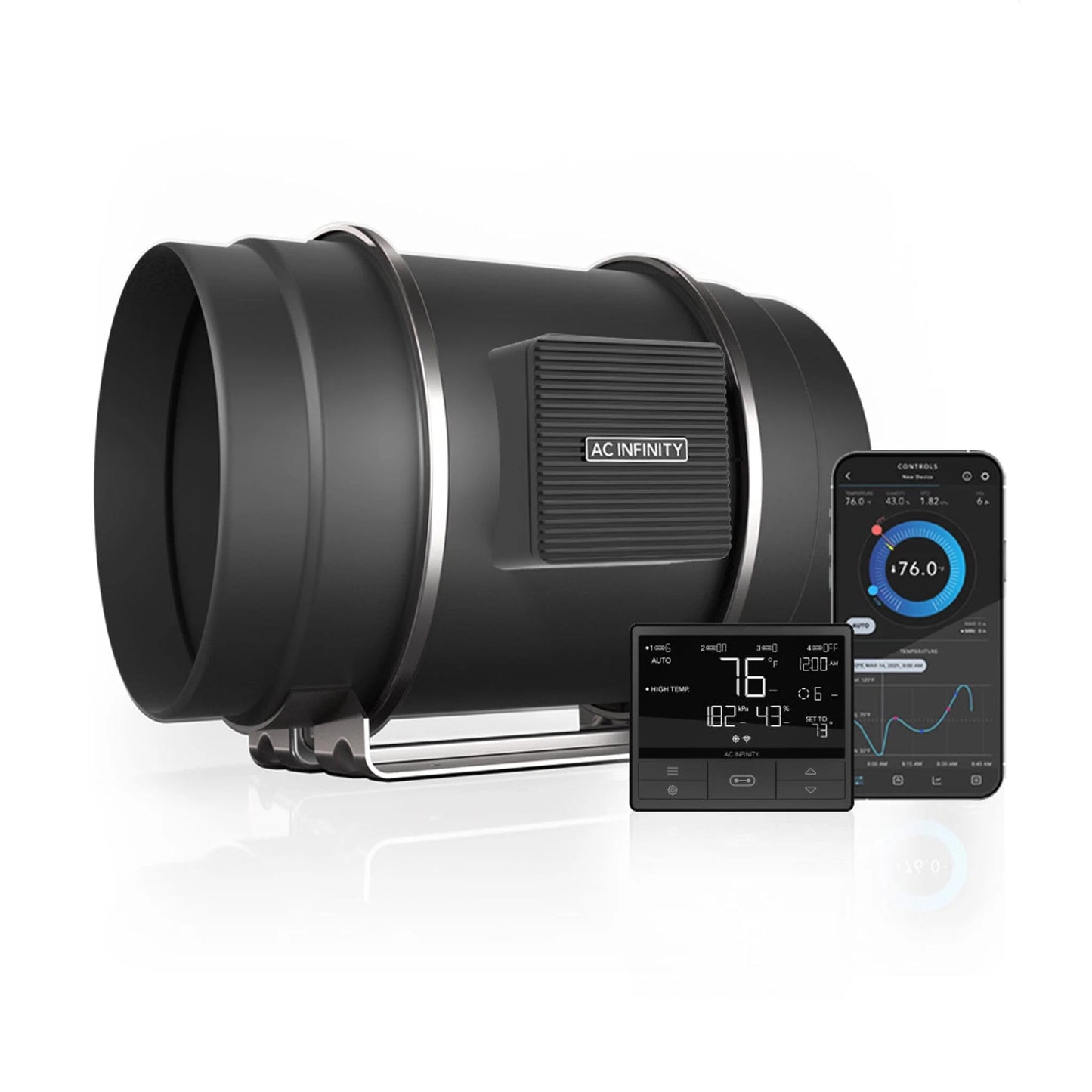

***SPECIAL ORDER*** Cloudline Pro T8, AC Infinity, Quiet Inline Duct Fan System with Temperature Humidity VPD Controller 69 Pro, 8 Inch - 200 MM

AC Infinity, Cloudline T8 Inline Duct Fan - WITH CONTROLLER 69 PRO. Wifi, Bluetooth and VPD

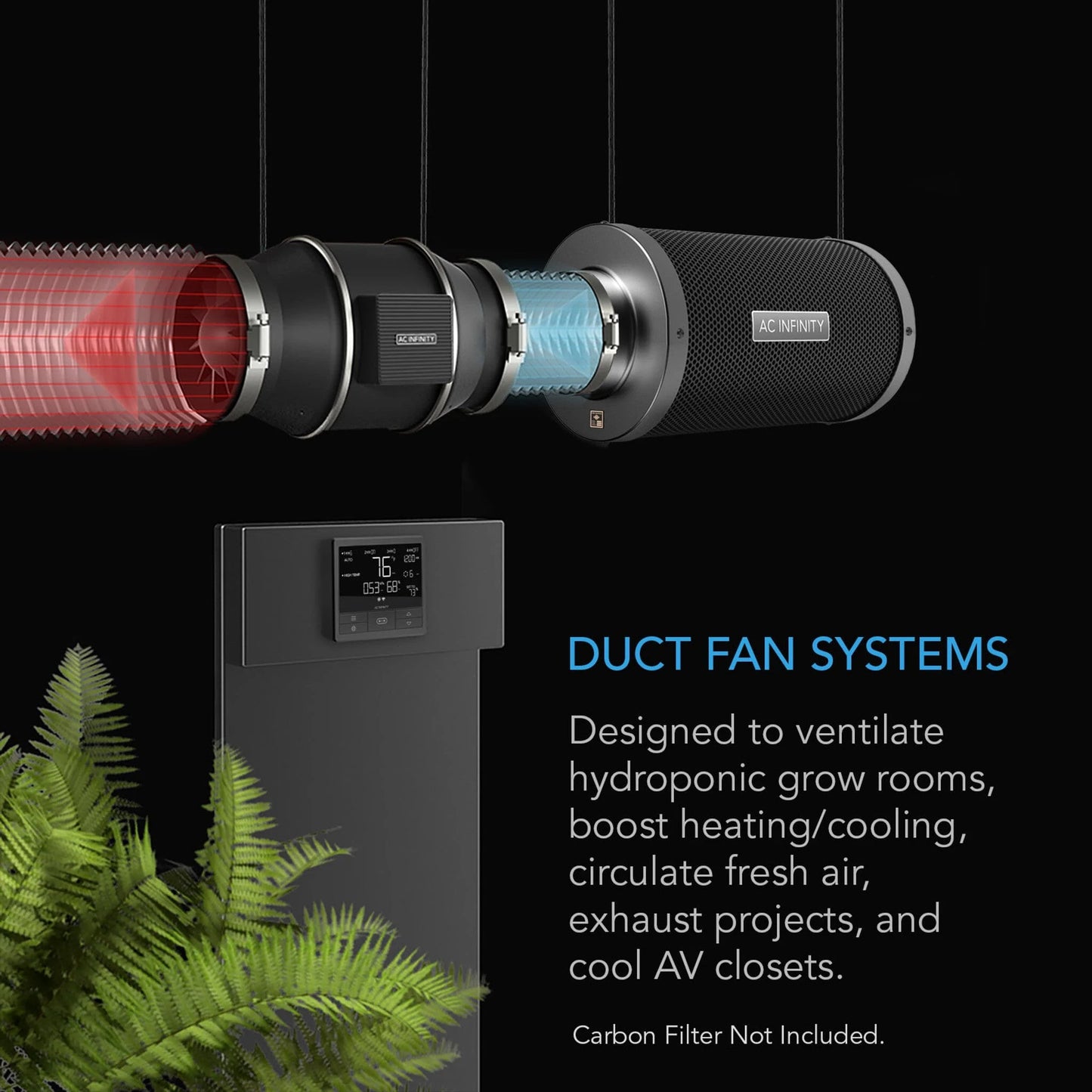

• Designed to ventilate hydroponic grow rooms, transfer heating/cooling, cool AV closets, and exhaust odors.
• Dynamic temperature and humidity programming, with timers, grow cycles, scheduling, minimum speed.
• Connect with our app via Bluetooth to access advance programs, alarms, notifications, and view climate data.
• Mixed flow design combined with a PWM-controlled EC-motor for a truly quiet and energy efficient performance.
• Duct Size: 8” | Dimensions: 8.5 x 11.9 x 9.2 in. | Airflow: 807 CFM | Noise: 39 dBA | Bearings: Dual Ball

PRODUCT DESCRIPTION

A smart inline duct fan designed to quietly ventilate hydroponic grow rooms, boost heating/cooling to rooms, circulate fresh air, exhaust projects, and cool AV closets. Featuring an inline mixed-flow design, the duct fan can maintain airflow even in high static pressure applications. Contains an EC-motor with PWM-control for quiet and energy-efficient performance. The motor box containing the fan’s impeller and blades can be detached from the mounted frame for easy cleaning and maintenance. Includes a smart controller with dynamic climate and time-based programming, and can connect to one additional fan. Complete kit includes one duct fan unit, one thermal controller, one corded thermal probe, two duct clamps, installation manual, and all necessary mounting hardware. This product is a part of the UIS™ platform of grow devices and smart controllers, designed to integrate with each other to achieve your ideal environment.

SMART CONTROLLER (Controller 69Pro)

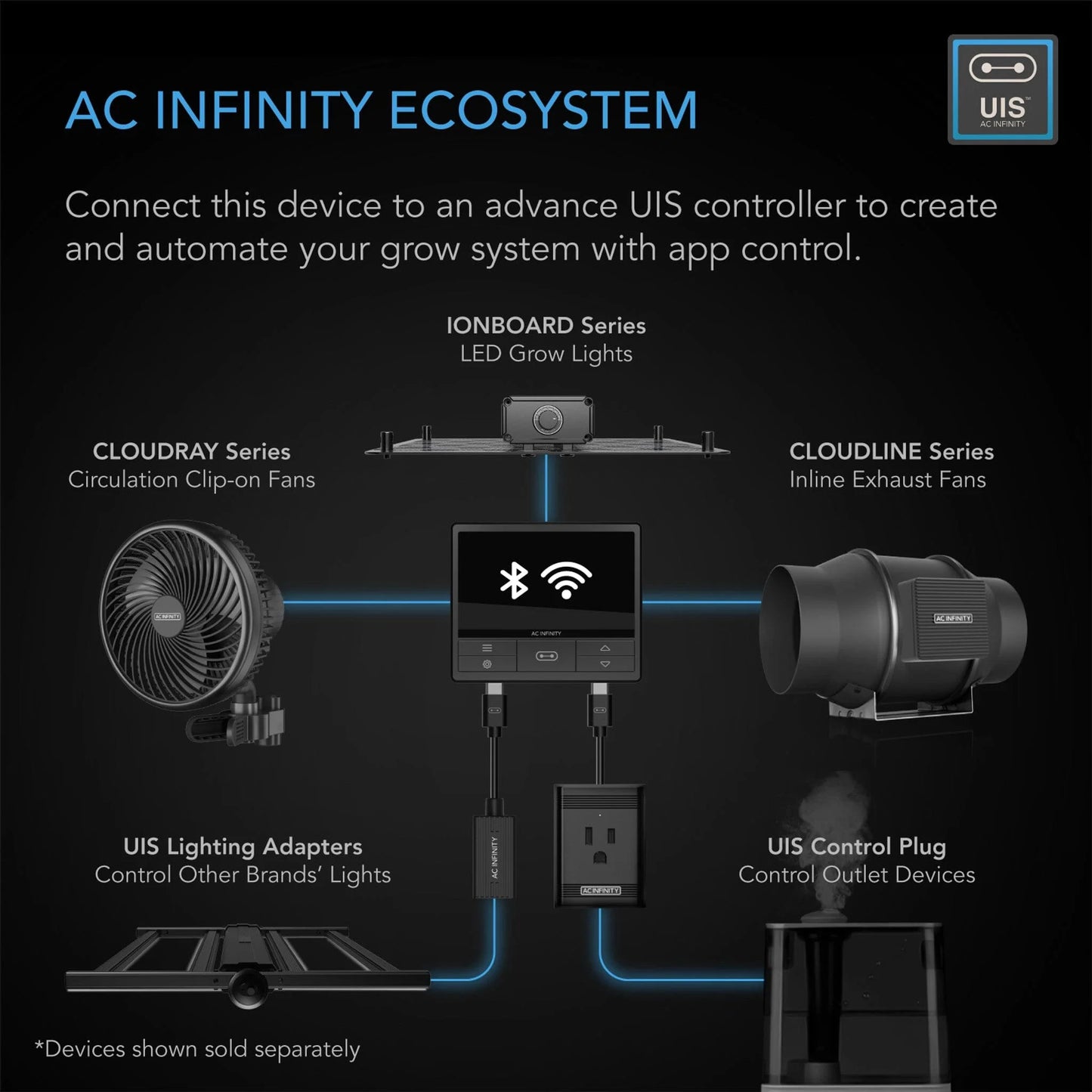

Features smart programming that not only has basic temperature and humidity triggers, but also allows you to set dynamic fan speeds that would respond based on their changes. Go even further by setting a minimum speed that the fan will run at constantly and would only increase when triggered. Timer, cycle, and schedule modes add custom on-demand activation for a variety of uses. Securely connect with the AC Infinity app via Bluetooth to access your fan remotely, unlock advance programs, set notifications, view historical climate charts, and export CSV data. This controller can connect to up to four UIS devices which includes products like the CLOUDLINE, CLOUDRAY, and IONBOARD Series. It can also connect to your favourite grow light and outlet device from outside the UIS platform using select adapters.

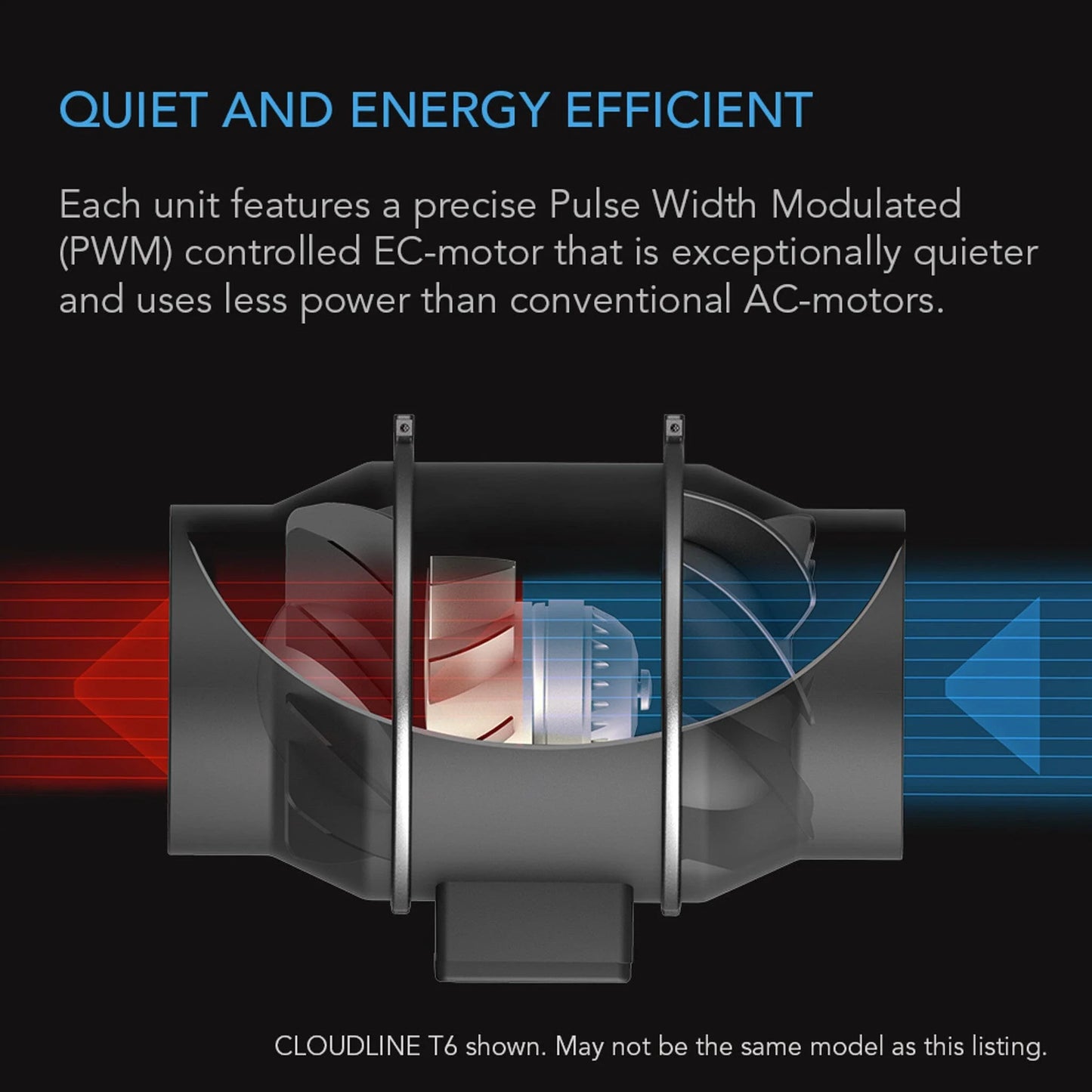

QUIET AND ENERGY EFFICIENT DESIGN

Unlike common duct fans that uses an AC-motor which are loud and unmanageable, this duct fan features an EC-motor that is controlled using PWM (Pulse Width Modulation). This technology enables motors to be able to run smoothly at extremely low RPM speeds without generating additional heat or noise. In addition, the duct fan uses a mixed flow design using a stator blade and dual hydrodynamic wind circles. This gives it a high static pressure rating, enabling it to deliver airflow even in applications where air movement is being restricted. The motor houses dual ball bearings rated at 67,000 hours which allows the duct fan unit to be mounted in any direction. The unit is IP44 rated to be highly resistant to dust and liquids, and performs well even in harsh environments.

APPLICATIONS

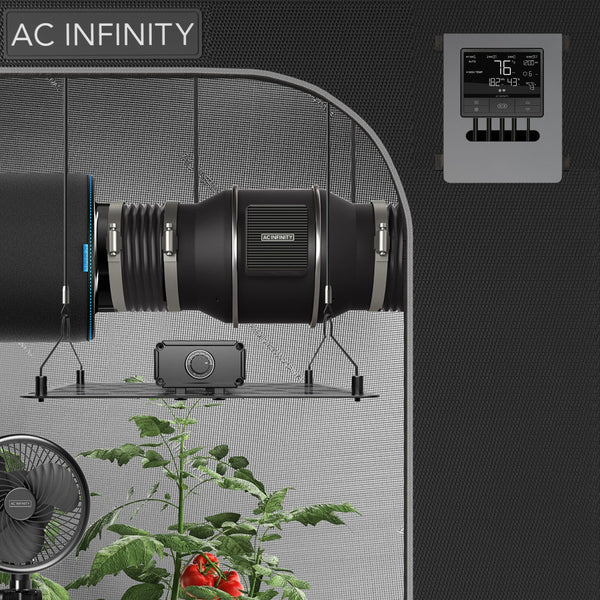

This quiet duct fan system is popular in a variety of applications including cooling AV equipment rooms, closets, racks, and cabinets. Due to its low noise and advanced control features, it’s also used in various air circulation and ventilation projects including hydroponic grow rooms and tents, exhausting bathrooms and attics, and other installations.

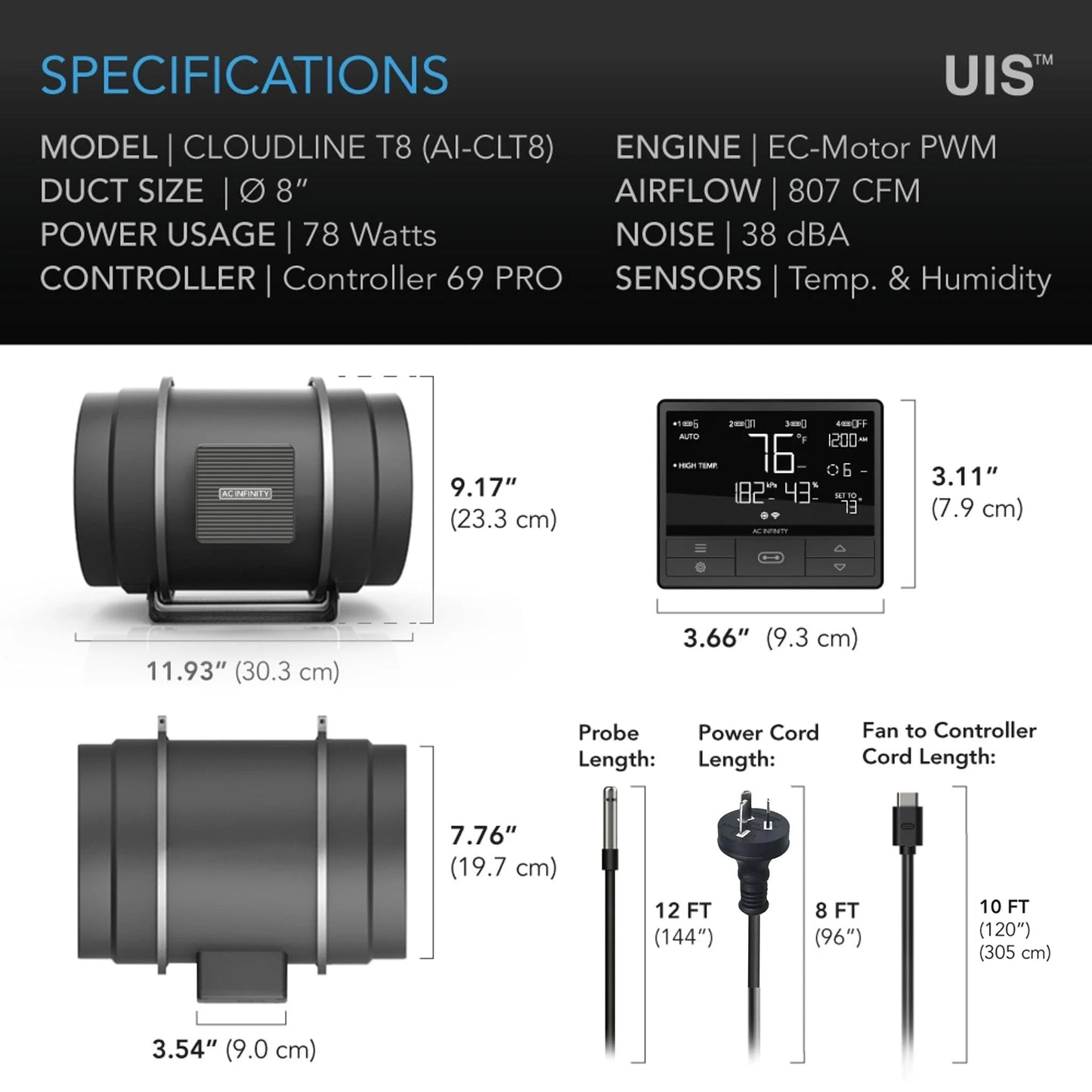

Technical Specifications

Product Identification   T8 Cloudline By AC Infinity
Manufacturer	AC Infinity Inc.
Product Name	CLOUDLINE T8
Product Model	AI-CLT8
UPC Code	819137020276
Product and Mounting Dimensions - Fan Unit
Duct Size	8"   / 200 MM
Total Dimensions	21.7 x 30.2 x 12.3 cm
Mounting Hole-To-Hole Distance	10.0 x 9.4 cm
Screw Hole Size	Ø 0.217 in. (Ø 0.55 cm)
Cord Length to Controller	240 in. (20 feet)
Product and Mounting Dimensions - Controller
Total Dimensions	3.34 x 2.95 x 0.51 in. (8.5 x 3.6 x 1.3 cm)
Required Mounting Area	2.95 x 0.51 in. (3.6 x 1.3 cm)
Hole to Hole Distance	2.87 in. (7.3 cm)
Screw Hole Size	Ø 0.157 in. (Ø 0.4 cm)
Cord Length to Plug	96 in. (8 feet)
Sensor Probe Length	144 in. (12 feet)
Product Performance and Technical Specs
Total Airflow	807 CFM
Total Noise	39 dBA
Static Pressure	746 Pa
Voltage	100-240V AC
Frequency	50/60Hz
Max Power Draw	110 W
Average Power Usage	78 W
Current	2.27 A
Power Connector Type	Australian Power Plug
Operating Humidity	35 to 85% RH
Operating Temperature	0 to 140°F
Ingress Protection	IP 44
Fan Bearings	Dual Ball
Mounting Positions	Horizontal or Vertical
L10 Life Expectancy	67,000 Hours
Fan Quality Approvals	CE, RoHS
CE Certification (Whole Product)	PDF
RoHS Cert. (Whole Product)	PDF
SAA Cert. (Whole Product)	PDF
Product Manual
Product Manual	PDF
